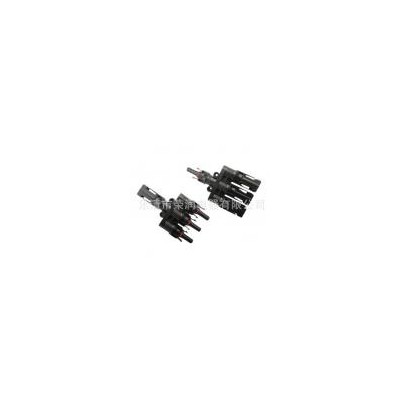

MC4分支连接器
主要技术规格： | Main Technical specification: |
●***大工作电压：1000V DC | Maximum working voltage:DC1000V |
●***大工作电流30A | Rated Current:40A |
●阻燃等级：UL94-V0 | Flame class: UL94-V0 |
●污染等级：2级 | Pollution degree:2 |
●连接电阻：≤5mmΩ | Contact resistance:≤1mmΩ |
●外壳防护等级：IP65 | Shell Protection degree:IP65 |
●使用温度：-40～+90℃ | Ambient temperature range：-40～+90℃ |
●安全等级：class‖2 | Safety Level:class‖2 |
●插入力：≤60N | Insertion force:≤60N |
● 拔出力：≥60N | Withdrawal force:≥60N |
● 绝缘体 材质：PPO+PA | material：PPO+PA |
● 接触材质：铜镀锡 | Contact material：tin-plated copper |
