| 产地 | 请咨询 |
|---|---|
| 原产国/地区 | 美国 |
| 是否进口 | 是 |
| 订货号 | 请咨询 |
| 货号 | OS-MINIHUB-SN21 |
| 是否跨境货源 | 否 |
| 测量范围 | 请咨询 |
| 名称 | 温度测量系统 |
| 品牌 | OMEGA |
| 型号 | OS-MINIHUB-SN21 |
| 加工定制 | 否 |
美国OMEGA欧米茄OS-MINIHUB-SN21/OS-MINIHUB-SN201红外温度监测系统
Specifications
Temperature Range: -20 to 1000°C (-4 to 1832°F)
Interface: RS485 Modbus RTU
Accuracy: ±1% of reading or ±1°C whichever is greater
Repeatability: ±0.5% of reading or ±0.5°C whichever is greater
Emissivity Setting: 0.2 to 1.0 Response Time, t90: 240 ms (90% response)
Spectral Range: 8 to 14 μm
Supply Voltage: 6 to 28 Vdc
Optional AC Power: 100 to 240 Vac, 0.3 A
Supply Current: 50 mA max
Baud Rate: 9600 baud *
Format: 8 data bits, no parity, 1 stop bit *
* Other configurations available upon request.
CONFIGURATION
Configuration Method: Via TSD600 touch screen, or directly via RS485 Modbus
Configurable Parameters: Emissivity Setting, Averaging, Peak/Valley Hold Processing, Reflected Energy Compensation
MECHANICAL
Construction: Stainless Steel
Dimensions: 18 dia x 45 mm L (0.7 x 1.7")
Thread Mounting: M16 x 1 mm pitch (0.03")
Cable Length: 1 m (3.3') (longer lengths available to order)
Weight with Cable: 85 g (3 oz)
ENVIRONMENTAL
Environmental Rating: IP65
Ambient Temperature: 0 to 120°C (32 to 248°F)
Relative Humidity: 95% max non-condensing
CONFORMITY
Electromagnetic Compatibility: EN61326-1, EN61326-2-3 (Electrical Equipment for Measurement, Control and Laboratory Use - EMC Requirements - Industrial)

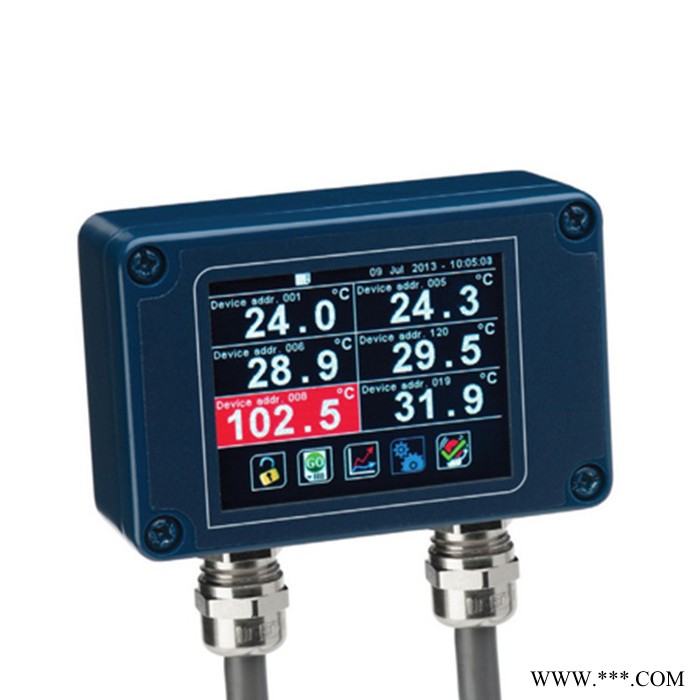

6-Channel Display Module
Specifications
Display: 72 mm (2.83") resistive touch TFT, 320 x 240 pixels, backlit
Supply Voltage: 10 to 30 Vdc
Maximum Current Draw: 100 mA
Configurable Parameters (Global): Temperature units, date and time, data logging, graph channels, alarm logging
Configurable Parameters (per Channel): Signal processing, emissivity setting, reflected energy compensation, alarms, Modbus address
Alarm Configuration: 12 alarms (2 per sensor) with adjustable level, individually configurable as HI or LO
Temperature Units: °C or °F selectable
Temperature Resolution: 0.1°
Signal Processing: Average, peak hold, valley hold, minimum, maximum
Display Sample Period: 120 ms per sensor (720 ms in total for 6 sensors)
DATA LOGGING
Logging Interval: 1 to 86,400 seconds (1 day)
MicroSD Card Max Capacity: 32 GB (not included)
Internal Clock Battery: 1 x BR 1225 3V (not included)
Variables Logged: Target temperature, sensing head temperature, alarm events
File Format: .csv (can be imported to Excel?)
Configurable Parameters: Sample period, number of samples, scheduled start date and time
MECHANICAL
Construction: Die cast aluminum
Electrical Connections: Removable screw terminals, 28 AWG to 18 AWG
Dimensions: 98 W x 64 H x 36 mm D (3.8 x 2.5 x 1.4"), excluding cable glands
Weight: 280 g (0.6 lb)
ENVIRONMENTAL
Environmental Rating: NEMA 4 (IP65)
Ambient Temperature Range: 0 to 60°C (32 to 140°F)
Relative Humidity: Maximum 95%, non-condensing
CONFORMITY
CE Marked
RoHS Compliant
Electromagnetic Compatibility:
EN61326-1, EN61326-2-3 (Electrical Equipment for Measurement, Control and Laboratory Use - EMC Requirements - Industrial)
OS-MINIHUB Specifcations
Construction: Die cast aluminum
Electrical Connections: Removable screw terminals, 28 to 18 AWG
Weight: 250 g (8.8 oz)
Environmental Rating: IP65
Enclosure Dimensions: 98 W x 64 H x 36 mm D (3.8 x 2.5 x 1.4")
