品牌：DP
型号：UTGT102520
宽度：30,1000
起订：100平方米
供应：2000000平方米
发货：3天内
| 型号 | UTGT102520 |
|---|---|
| 宽度 | 30,1000 |
| 基材 | PET |
| 适用范围 | 电子,晶圆切割 |
| 颜色 | 透明 |
| 胶系 | UV胶 |
| 延伸系数 | 1 |
| 品牌 | 昆山德品包装 |
| 加工定制 | 是 |
| 纯肉厚 | 可定制 |
| 是否双面胶带 | 否 |

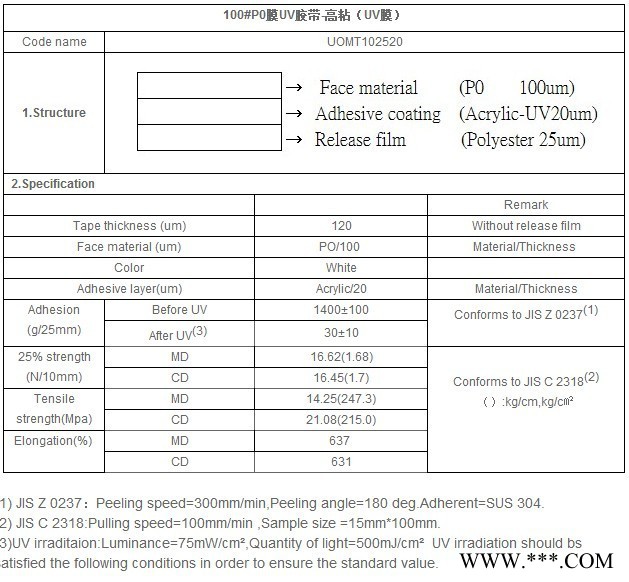

| 100#PET 膜UV 胶带-高粘 | |||
| Co**me | UTGT102520 | ||
| 1.Structure |
| ||
| 2.Specification | |||
| Remark | |||
| Tape thickness (um) | 120 | Without release film | |
| Face material (um) | PET/100 | Material/Thickness | |
| Color | Clear | ||
| Adhesive layer(um) | Acrylic/20 | Material/Thickness | |
| Adhesion (g/25mm) | Before UV | 1400±100 | Conforms to JIS Z 0237 (1) |
| After UV(2) | 30±10 | ||
(1) JIS Z 0237：Peeling speed=300mm/min,Peeling angle=180 deg.Adherent=SUS 304.
(2)UV irraditaion:Luminance=75mW/cm2,Quantity of light=500mJ/cm2 UV irradiation should bs satisfied the following conditions in order to ensure the standard value.
