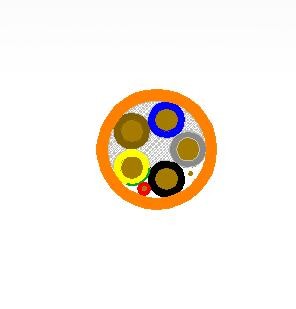

三相交流充电线电缆
市场价： 0.00
价格： 0.00
| 规格Spec | 导体绞合外径 Conductor Stranded OD Ref. mm | 导体电阻 Max. Conductor resistance，mΩ/m@20℃ | 允载电流 Permissible ampacity@20℃ ambient | 无屏蔽完成外径 Non-screen Over diameter mm Ref. | 包装 Packing M/Reel |
| 5×1.5mm2+(1～2)×(0.5～0.75)mm2 | 1.6 | 13.3 | 13A | 12.5~14.5 | 500m/700# |
| 5×2.5mm2+(1～2)×(0.5～0.75)mm2 | 2.1 | 7.98 | 18A | 13.5~15.5 | 500m/700# |
| 5×4.0mm2+(1～2)×(0.5～0.75)mm2 | 2.8 | 4.95 | 25A | 16.0~17.5 | 400m/800# |
| 5×6.0mm2+(1～2)×(0.5～0.75)mm2 | 3.5 | 3.3 | 34A | 18.0~19.5 | 500m/950# |
| 5×10.0mm2+(1～2)×(0.5～0.75)mm2 | 4.5 | 1.91 | 50A | 22.5~24.0 | 400m/950# |
| 5×16mm2+(1～2)×(0.5～0.75)mm2 | 5.7 | 1.21 | 67A | 26.0~27.5 | 300m/950# |
| 5×25mm2+(1～2)×(0.5～0.75)mm2 | 7.2 | 0.78 | 90A | 31.0~32.0 | 400m/1200# |
| 5×35mm2+(1～2)×(0.5～0.75)mm2 | 8.4 | 0.554 | 110A | 36.0~38.0 | 300m/1200# |
| 1、以上载流量仅供参考使用，具体的选择请按实际情况。 Above carrying capacity are for reference only, specific choice according to the actual situation, please 2、产品的具体参数以技术图纸为准。 the specific parameters of product should be according to technical drawings. | |||||
