Specification | ||||||||
Part No. | Rated | Rated Current | Breaking Capacity | Energy Integrals I2t (A2S) | Power Loss | |||
Pre‐Arcing | Total at 1000V | 0.8In | 1.0In | |||||
DC | DC | |||||||
PV1000.1A | 1000V | 1A | 10kA, Time Constant <1ms | 0.15 | 0.4 | 0.8 | 1.5 | |
PV1000.2A | 2A | 1.3 | 3.4 | 0.7 | 1.1 | |||
PV1000.3A | 3A | 4 | 12 | 0.8 | 1.3 | |||
PV1000.3.5A | 3.5A | 6.5 | 20 | 0.9 | 1.4 | |||
PV1000.4A | 4A | 10 | 28 | 1.1 | 1.4 | |||
PV1000.5A | 5A | 19 | 50 | 1.1 | 1.4 | |||
PV1000.6A | 6A | 32 | 93 | 1.2 | 1.8 | |||
PV1000.8A | 8A | 3.2 | 33 | 1.2 | 2.2 | |||
PV1000.10A | 10A | 30 | 70 | 1.3 | 2.3 | |||
PV1000.12A | 12A | 50 | 200 | 1.5 | 2.8 | |||
PV1000.15A | 15A | 60 | 230 | 1.8 | 3 | |||

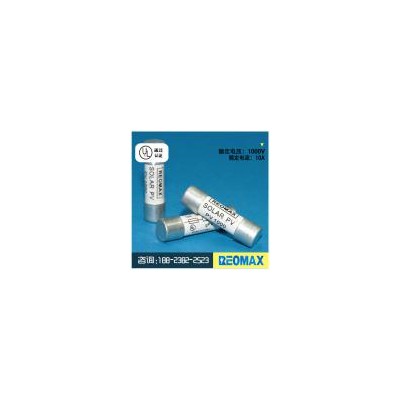

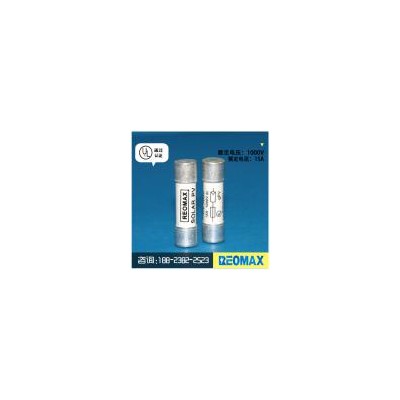

光伏熔断器(PV1000)
