应用描述Application Description

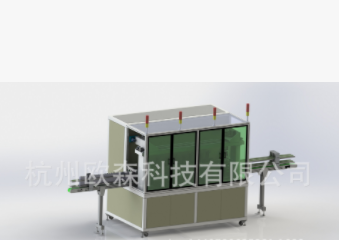

本机主要实现对锂电池高精密测漏;
This machine mainly realizes high precision leak detection of lithium battery;
功能特点：Functional characteristics:
整机布局合理紧凑、美观、上档次
The layout of the whole machine is reasonable and compact and beautiful
系统采用PLC自动控制，运行稳定，关键部件采用进口品牌
The system is controlled by PLC and runs stably. The key components are imported brands.
同时兼具大漏和小漏顺序自动检测，检漏参数设置灵活、检测效率高；
The invention has the advantages of large leakage and small leakage sequence automatic detection, flexible leakage detection parameter setting and high detection efficiency;
本机可嵌入产线或单机独立运行，多工位检测可使用模组或机械手进行上下料，方便操作、维护方便;
This machine can be embedded into the production line or stand-alone operation, multi-station detection can use modules or manipulators for loading and unloading, convenient operation, easy maintenance
检测数据后台自动存储，系统预留数据接口，方便MES系统对接;
The data background of the detection data is automatically stored, the data interface of the system is reserved, and the MES system is convenient to interface;
系统描述：System description:
系统主要有：上下料系统、输送系统、氦质谱等系统高度集成。
The main system is: loading and unloading system, conveying system, helium mass spectrometry and other systems highly integrated.
技术参数technical parameter
净尺寸 | 最大漏率 | |
系统占地面积System floor area | 4200×1800×1900 | 1×10-6Pa·m³/S |
真空舱性能Vacuum tank performance | （内腔净尺寸，可根据方壳尺寸定制） | 5.2×10-7Pa·m³/S |
氦质谱性能Helium mass spectrum performance | 393×547×375 | 5.2×10-8Pa·m³/S |
抽充氦气真空系统Pumping helium vacuum system | 5.2×10-7Pa·m³/S | |
功率Power | ||
节拍Time | 可根据生产需求设定Can be set according to production requirement |
